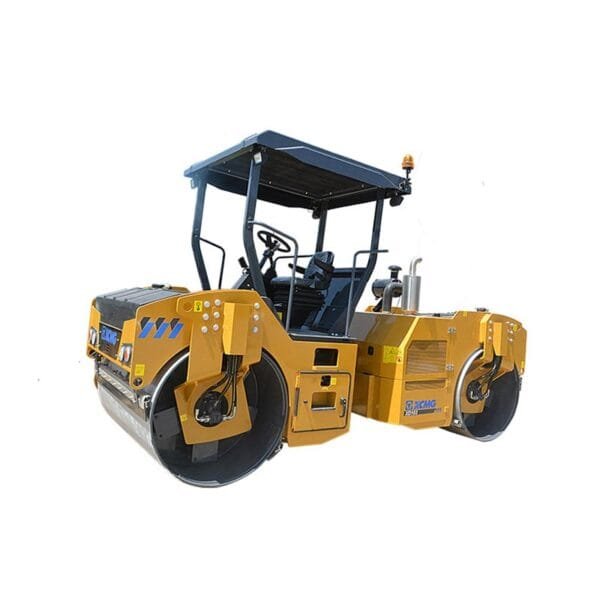

XD103 vibratory roller is suitable for compact-ing asphalt pavement, small base, sub-base and filing materials. It is an ideal compaction equipment for the compaction of asphalt to player during high-speed highway maintenance.
| ITEM | PARAMETER | UNIT |
| Operating weight | 10000 | kg |
| Front axle weight | 5000 | kg |
| Rear axle weight | 5000 | kg |
| Static linear load | 280 | N/cm |
| Operating speed | 0-7.5/0~12 | km/h |
| Gradeability | 35 | % |
| Minimum turning radius | 5820 | mm |
| Minimum ground clearance | 260 | mm |
| Wheel base | 3470 | mm |
| Vibration frequency | Vibration frequency | Hz |
| Nominal amplitude | Nominal amplitude | mm |
| Excitation force | 90/110 | kN |
| Drum diameter | 1150 | mm |
| Drum width | 1750 | mm |
| Engine | Cummins | |
| Emission | China III | |
| Rated power | 86 | kW |
| Rated speed | 2200 | r/min |
| Fuel tank | 167 | L |
| Water tank | 740 | L |
