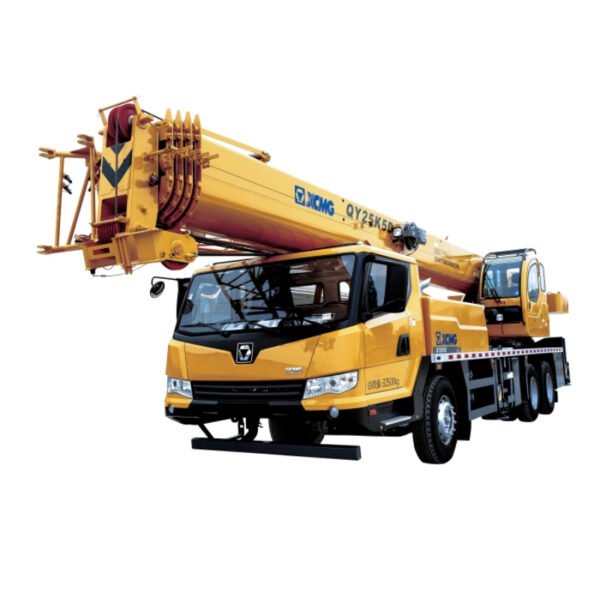

XCMG new product 25 ton truck crane
Model: QY25K5D
Main specifications:
| Dimension |
Unit |
QY25K5D |
| Overall length |
mm |
12780 |
| Overall width |
mm |
2500 |
| Overall height |
mm |
3400 |
| Weight | ||
| Total weight in travel |
kg |
32500 |
| 1st axle load |
kg |
7300 |
| 2nd axle load |
kg |
12600 |
| 3rd axle load |
kg |
12600 |
| Power of engine | ||
| Engine model |
SC9DF300.1Q5 |
|
| Engine rated power |
kW/(r/min) |
221/2200 |
| Engine rated torque |
N.m/(r/min) |
1250/1400 |
| Specifications in Travel | ||
| Max. travel speed |
km/h |
80 |
| Min. turning diameter |
m |
22 |
| Min. ground clearance |
mm |
250 |
| Approach angle |
° |
10 |
| Departure angle |
° |
13 |
| Max. grade ability |
% |
40 |
| Fuel consumption for 100km |
L |
≈30 |
| Main performance | ||
| Max. rated total lifting capacity |
t |
25 |
| Min. rated working radius |
mm |
3000 |
| Turning radius at counter-weight |
m |
3.36 |
| Max. lifting torque |
kN.m |
1005 |
| Base boom |
m |
10.5 |
| Fully extended boom |
m |
41 |
| Fully extended boom+jib |
m |
48.5 |
| Longitudinal outrigger span |
m |
5.14 |
| Lateral outrigger span |
m |
6 |
| Working speed | ||
| Boom luffing time |
s |
38 |
| Boom full extension time |
s |
93 |
| Max. swing speed |
r/min |
2.5 |
| Max. speed of main winch (single rope) (no load) |
m/min |
125 |
| Max. speed of aux. winch (single rope) (no load) |
m/min |
125 |
