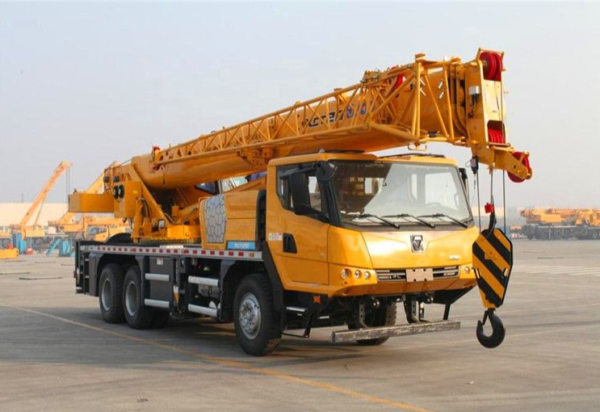

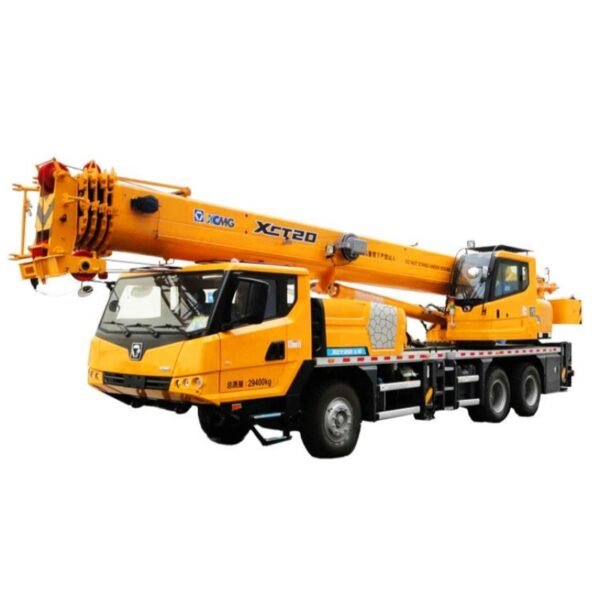

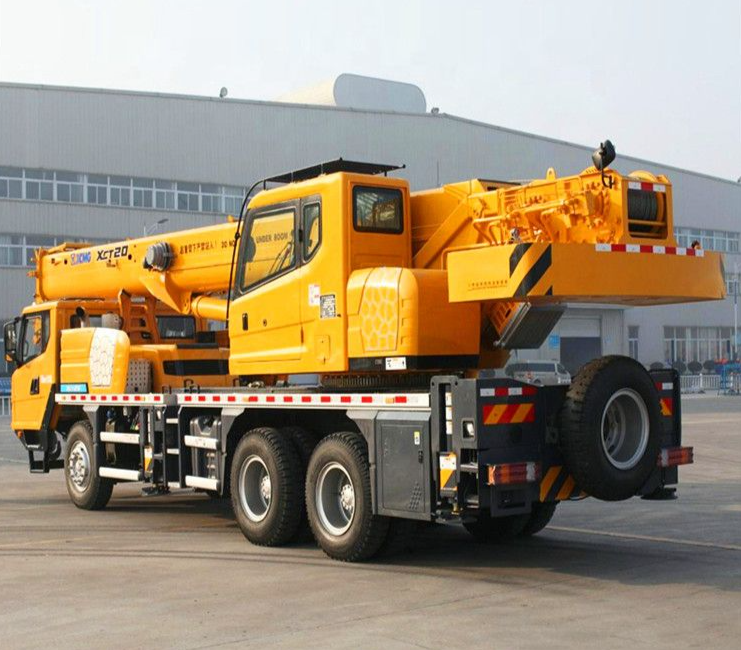

XCMG Truck Crane XCT20

Max. lifting weight

20 ton

Main boom length

34m

Engine power

192/199kW

Product Specification

Main specifications:

Technical specifications of travel state
category	Item	Unit	Data
Weight	Total weight	kg	26020
Power	Engine Model	\	SC7H260Q4 / WP7.270E43
	Engine output	kw/(r/min)	192/2300 \| 199/2300
	Engine Max. torque	N.m/(r/min)	1000/1200-1600 \| 1160/1100-1700
Travel	Max. speed	km/h	80/85
	Min. turning diameter	m	20
	Min. ground clearance	mm	261
	Max. gradeability	%	45/50

Technical specifications of crane operation
category	Item		Unit	Data
Lift	Max. lift capacity		t	20
	Max. lift moment		KN	957
	Min. working radius		m	3
	Max. lifting moment		kN.m	957
	Boom length	Base boom	m	10.6
		longest main boom	m	34
		Boom+Jib	m	42.3
	Jib install angle		°	0/15/30
Speed	Main boom luffing time		s	35
	Main boom extend time		s	50
	Slewing speed		r/min	3
	lift speed	Main winch no load	m/min	135
	lift speed	Vice winch no load	m/min	135

Welcome to contact us to get more information of parameter and pictures.

We will quote you with our best prices, waiting for your inquiry!
